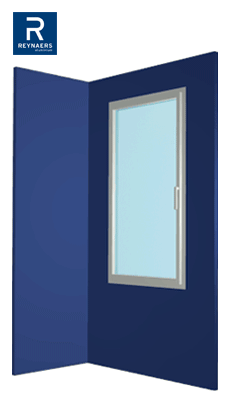

The window sash can be opened to the outside. This can be done manually or by means of a spindle or by chain drives.
The window sash can be opened to the outside. The opened sash must be arrested with an opening restrictor.

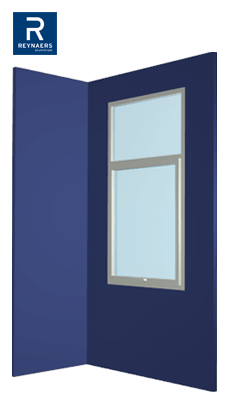

The window sash is projected to the outside, with limited opening angles.
The new SlimLine 68 outward opening windows allow for maximum daylight access and feature excellent weather resistance and optimal insulation properties. The ultra slim sight lines ensure that even in small openings daylight access isn’t compromised in favour of performances. This makes SlimLine 68 windows the ideal solution for renovation purposes in domestic buildings and new builds as well.
SlimLine 68 vents can be glazed from the inside as well as the outside and are available on a standard and a HI insulation level.
The CS 77 system offers a comprehensive range of inward- and outward-opening window and door designs that are available in a range of three different styles, making it ideal for both traditional and contemporary building designs.
Combined with a huge choice of colours and finishes, and the ability to specify a different colour inside and out, the CS 77 is a truly versatile system that can be specified to compliment almost any home.
The fibreglass-reinforced polyamide strips and weather gaskets are designed with ribs and hollow chambers to achieve superior thermal insulation levels. A variant of the CS 77 has been awarded the coveted Swiss Minergie accreditation.
Thermally broken window that allows for both side hung and top hung outward openings. This solution, with a thermal break zone of 32 mm and a transmittance Uw from 1.0 W/ m²K, has the British security certification PAS 24, being especially suitable for this market.
Elegant design with straight aesthetic in which the sash is concealed behind the frame, thus maximising the glazed surface and the entry of light. Added to all of this is the great thermal and acoustic performance prompted by the 45 mm thermal break and a glazing capacity of up to 51 mm that allows the installation of triple glazing.
Elegant design with straight aesthetic in which the sash is concealed behind the frame, thus maximising the glazed surface and the entry of light. Added to all of this is the great thermal and acoustic performance prompted by the 45 mm thermal break and a glazing capacity of up to 51 mm that allows the installation of triple glazing.Schuco AWS 70 SC (slimline casement) window provides a cost effective solution for new and replacement windows in houses and apartments, light commercial buildings, local authority properties, schools, hospitals and clinics.
A variety of different application are possible with this system, which can be used in punched openings, ribbon windows and curtain walling. It therefore provides a wide range of unique features and impressive benefits to meet any requirement.
Turn and tilt windows have dual hinge systems and two different vent opening settings: tilt and turn opening. When the window vent is in the “tilt” mode the top of the vent opens slightly inward for a secure ventilation; and when in the “turn” mode the vent swings open fully like a side hinged window.
A tilt and turn window has restricted opening of typically 15 degrees. This allows for adequate ventilation, making them ideal for offices, businesses, hotels and flats. The safety and cleaning options make this style of window increasingly popular and they are incorporated in many newly built flats.
Schuco ASW 70 SC windows are designed especially for outward opening.
