CS68 Hidden vent windows
The window system offers a range of solutions for inward and outward opening windows and is compatible with the Ventalis® ventilation units. In addition, CS68 windows can comply with burglar resistance classes 2 and 3, offering an ultimate level of security.

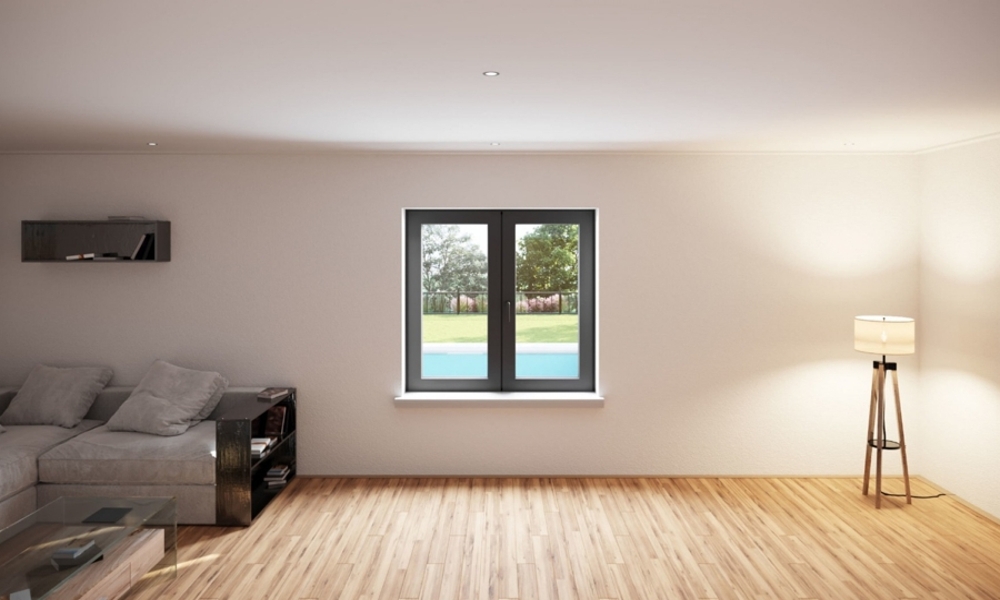

Concept System 68 'Hidden Vent' window
Concept System® 68 is a universal window system, with good performances regarding stability, thermal insulation and security. The system is available in two aesthetic styles: Functional and Hidden Vent — this way the windows can match your building style perfectly.The window system offers a range of solutions for inward and outward opening windows and is compatible with the Ventalis® ventilation units. In addition, CS68 windows can comply with burglar resistance classes 2 and 3, offering an ultimate level of security.
Properties
Max. dimensions & weight
- Min. Visible width frame: inward opening – 76 mm
- Min. Visible width frame-vent: inward opening – 76 mm
- Min. Visible width T-profile – 101 mm
- Max. height vent – 2400 mm
- Max. width vent – 800 mm
- Max. weight element – 120 kg
- Overall system depth frame – 59 mm
- Overall system depth vent – 63.5 mm
- Rebate height – 18.5 mm
- Min. Glass thickness – 12 mm
- Max. Glass thickness – 40 mm
- Min. Glass thickness vent – 12 mm
- Max. Glass thickness vent – 40 mm
